ACF COF Tape for LCD Repair

Application:
1.Special used for Glass
2.Repair PCB board cable cripping process used
3.Repair TAC press Glass cable cripping used
4.Repair TAB press Glass cable cripping used



Pls check the below model NO,if you need some other model NO,pls let me know.

	Model No.	size	Noted
1	AC-7246LU-18	1.5MM*25M	Specail used for Glass
2		1.5MM*50M
3	AC-7246LU-18	2.0MM*25M
4		2.0MM*50M

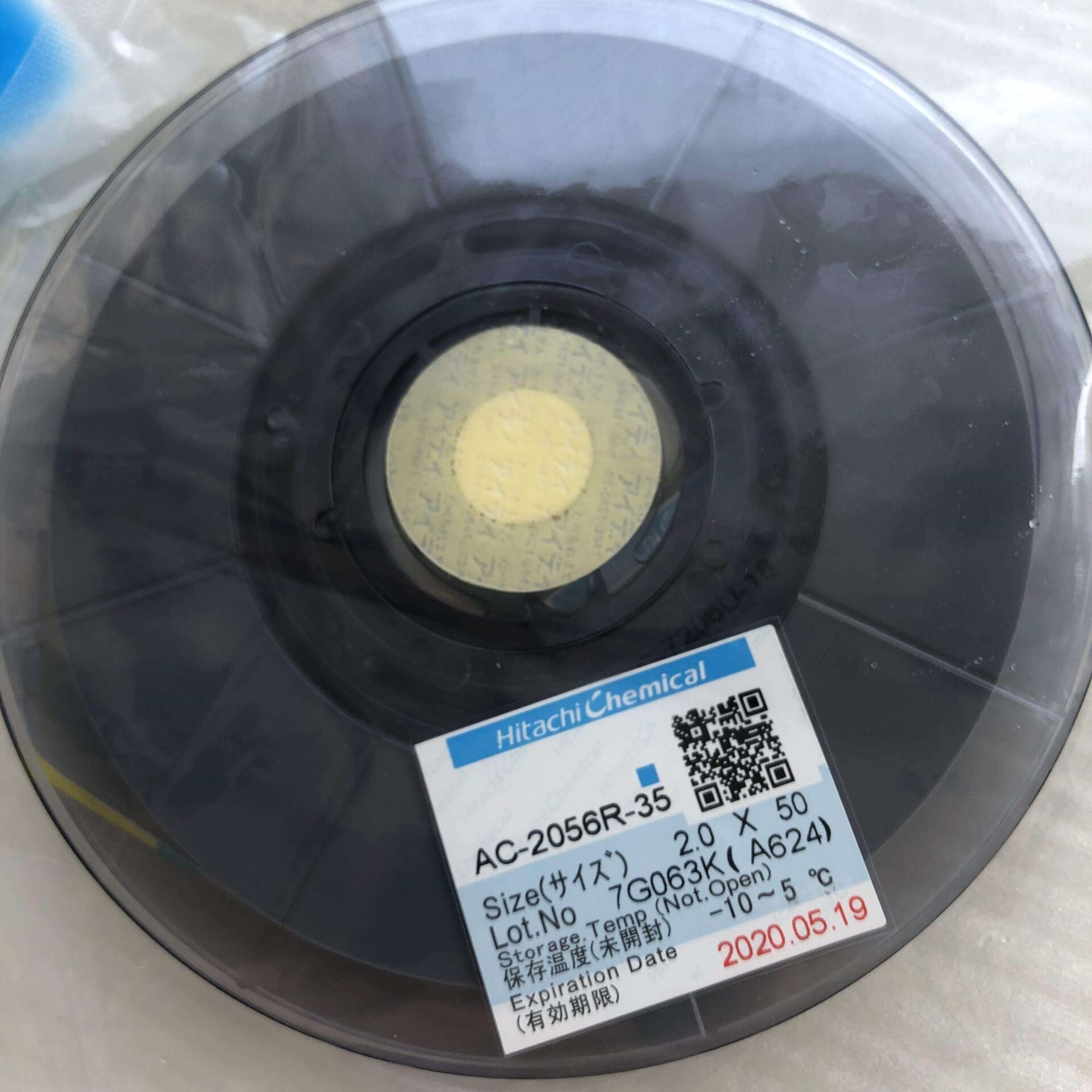

5	AC-2056R-35	2.0MM*25M	Repair PCB board cable cripping process used
6		2.0MM*50M
7	AC-3614KSH	1.5MM*25M	Repair TAB press Glass cable cripping used
8		1.5MM*50M
9	AC-7206U-18	2.0MM*25M	Repair TAB press Glass cable cripping used
10		2.0MM*50M
11		1.5MM*50M	Repair TAB press Glass cable cripping used

ACF preservation methods and the use of terms:

1. Unopened of the ACF, storage conditions: -10 ~ 5, after their period of use for the manufacture of six months (at the date of manufacture and storage conditions of validity of the trademark would indicate ACF).

2. Saved condition Kaifeng product of: -10 ~ 5 for SONY15 day period of its use, for HITACH30 day items that have been opened and exposed to the air, saving the time of only seven days; unopened’s products if stored in a hot environment next, it will shorten its useful life.

3. ACF accelerated heat cure; if more than the use of expired product warranty period, the company provides: unopened ACF from the factory date, no more than one year following the use of more than one year scrapped, have been opened ACF direct scrapped

Application:  LCD mobile screen, LCD computer screen, LCD touch screen, Camera, Silicon solar cells for (TAB, COG, FOG, COF technology)

Anisotropic conductive film adhesive

ACF adhesive Conductive film for LCD

ACF conductive film

ACF Storage

1)      Store ACF in -10 oC~ 5 oC once your get it.

2)      Put ACF in 22 5 oC about 30 mins before you use it.

3)      Everytime the first 20cm is only for testing machine to keep the same bonding quality.

4)      ACF needs to be back in -10 oC~ 5 oC storage as soon as possible.
